Wednesday, August 30, 2017

Retrospective Lightweight Distributed Snapshots Using Loosely Synchronized Clocks

This is a summary of our recent work that appeared at ICDCS 2017. The tool we developed, Retroscope (available on GitHub), enables unplanned retrospective consistent global snapshots for distributed systems.

Many distributed systems would benefit from the ability to take unplanned snapshots of the past. Let's say Alice notices alarms going off for her distributed system deployment at 4:05pm. If she could roll-back to the state of the distributed system at 4:00pm, and roll forward step by step to figure out what caused the problems, she may be able to remedy the problem.

The ability to take retrospective snapshots requires each node to maintain a log of state changes and then to collate/align these logs to construct a consistent cut at a given time. However, clock uncertainty/skew among nodes is dangerous and can lead to taking an inconsistent snapshot. For example, the cut at 4:00pm in this figure using NTP is inconsistent, because event F is included in the cut, but causally preceding event E is not included.

To avoid this problem with physical clock synchronization, our snapshotting service Retroscope employs Hybrid Logical Clocks (HLC), that combine the benefits of physical time along with causality tracking of logical clocks (LC). By leveraging HLC, our system can take non-blocking unplanned/retrospective consistent snapshots of distributed systems with affinity to physical time.

Hybrid Logical Clocks

Each HLC timestamp is a two-part tuple: the first part is a shadow-copy of NTP time, and the second part is an overflow buffer used when multiple events have identical first parts in their HLC timestamp. The first part of HLC at a node is maintained as the highest NTP time that the node is aware of. (This comes from the node's own physical clock, or comes from a remote node from which a message was received recently.) The second part acts as the logical clock for events with identical first parts, and it is being reset every time the first part is updated.

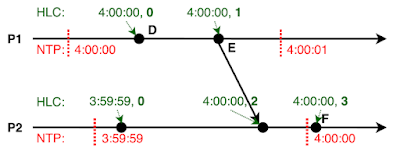

The figure shows HLC in operation, with HLC timestamps in green, and the machine’s physical time in red. Note how message exchange between P1 and P2 bumps P2’s first HLC component to be higher than its own physical clock.

HLC not only keeps track of physical time, but also provides the same guarantees as the LC. Namely, HLC satisfies the LC condition: if e hb f then HLC.e < HLC.f. These HLC properties allows us to identify consistent cuts the same way we identify them with LC: a cut is consistent when all events have the same timestamp. In situations where we have no event with desired timestamp, we can create a phantom, non-mutating event at the desired timestamp and use it to identify the consistent cut.

Taking a Snapshot

An initiating agent can start the snapshot procedure by sending a snapshot request to every node. Each node, upon receiving the request performs a local snapshot of its current state, and uses the window-logs of state changes to undo the changes until the state reaches the requested HLC time. Each node performs snapshot independently, and there is no need for inter-node coordination on taking the snapshot. Once all machines have arrived to local snapshots at the same HLC time, we have obtained a global distributed snapshot (by virtue of the HLC feature stated above).

Our tool Retroscope also supports incremental snapshots to take an inexpensive snapshot in the vicinity of another snapshot by undoing (or redoing) events to reach the new one. These incremental snapshots are very useful for monitoring tasks, in which we need to explore many past system states in a step-through manner while searching for some invariant violation or fault causes.

We have implemented Retroscope as a set of libraries to be added to existing Java projects to enable retrospective snapshots capabilities. Our Retroscope library provides tools to log and keep track of state changes and HLC time of such changes independently at each node. The current implementation uses in-memory sliding-window log for state history, and have configurable capacity. The Retroscope server library provides the tools to aggregate multiple such event logs and identify consistent cuts across those logs with affinity to physical time. The API also allows querying for consistent cuts that satisfy certain predicates using a SQL-like querying language.

We will talk about Retroscope's querying and monitoring features in a later blog post.


We have added Retroscope capabilities to several Java applications, such as Voldemort key-value database, Hazelcast in memory data-grid, and ZooKeeper.

Retroscoping Voldemort took less than 1000 lines of code for adding HLC to the network protocol, recording changes in the Retroscope window-log, and performing snapshot on the Voldemort's storage. To quantify the overhead caused by Retroscope, we compared the performance of our modified Voldemort with unmodified version on a 10-node cluster. The figure below illustrates the throughput degradation resulted from adding Retroscope to the system. We observed that in the worst case, the degradation was around 10%, however in some cases we also observed no degradation at all. Latency overheads were similar to the throughput.

Taking a snapshot brings more stress to Voldemort, a disk-based system, as each node now needs to get a copy of it local state and undo changes from that copy. Retroscope allows for the entire snapshot routine to run in non-blocking manner, but with some performance degradation. The figure below illustrate the throughput and latency of the client requests on the 10-node cluster while performing a snapshot on a database of 1,000,000 items. Average throughput degradation of the system while taking a snapshot was 18%, although the performance can be improved by using a separate disk to make a database copy.

We also ran a similar experiment on Hazelcast in-memory datagrid, and observed very little performance degradation associated with the snapshot, since Hazelcast is in-memory system.

(This was a joint post with Aleksey Charapko.)

Sunday, August 27, 2017

Paper summary: Performance clarity as a first-class design principle (HOTOS'17)

This paper appeared in HOTOS'17 and is by Kay Ousterhout, Christopher Canel, Max Wolffe, Sylvia Ratnasamy, and Scott Shenker. (The team is at UC Berkeley Christopher is now at CMU.)

The paper argues that performance clarity is as important a design goal as performance or scalability. Performance clarity means ease of understanding where bottlenecks lie in a deployment and the performance implications of various system changes.

The motivation for giving priority to performance clarity arises from the performance opaqaness of distributed systems we have, and how hard it is to configure/tune them to optimize performance. In current distributed data processing systems, a small change in hardware or software configurations may cause disproportional impact on performance. An earlier paper, Ernest, showed that selecting an appropriate cloud instance type could improve performance by 1.9× without increasing cost. And when things run slowly in a deployment, it is hard to determine where the bottlenecks are.

This discussion on performance clarity reminds me of a Tony Hoare quote on software design:
There are two ways of constructing a software design: One way is to make it so simple that there are obviously no deficiencies, and the Other way is to make it so complicated that there are no obvious deficiencies. The first method is far more difficult.
This paper advocates to design the system so clear that if there are deficiencies in the deployment/configuration, they become obvious and can be accounted for.


Concretely, the paper proposes an architecture for data analytics frameworks (Spark in particular) in which jobs are decomposed into schedulable small units called "monotasks". Each monotask use exactly one of CPU, disk, and network.

This is an unconventional take. Today's frameworks break jobs into tasks that time-share the use of CPU, disk, and network. Concurrent tasks may contend for resources, even when their aggregate resource use does not exceed the capacity of the machine. In contrast, a single monotask has exclusive access to a resource. The benefit this provides is guaranteed resource isolation without any cross contention from another tasks.

Using monotasks to explicitly separate resources makes the bottleneck visible: the bottleneck is simply the resource (disk, CPU, or network) with the longest queue.


The hypothesis tested in the evaluation is that "using monotasks improves performance clarity without sacrificing high performance".

They give a prototype implementation of monotasks for Apache Spark, called MonoSpark, that  achieves performance parity with Spark for benchmark workloads. Their monotask implementation also yields a simple performance model that can predict the effects of future hardware and software changes.

So does monotasks hurt performance? I am quoting from the paper:
"Because using monotasks serializes the resource use of a multitask, the work done by one of today’s multitasks will take longer to complete using monotasks. To compensate, MonoSpark relies on the fact that today’s jobs are typically broken into many more multitasks than there are slots to run those tasks, and MonoSpark can run more concurrent tasks than today’s frameworks. For example, on a worker machine with four CPU cores, Apache Spark would typically run four concurrent tasks: one on each core, as shown in Figure 1. With MonoSpark, on the other hand, four CPU monotasks can run concurrently with a network monotask (to read input data for future CPU monotasks) and with two disk monotasks (to write output), so runtime of a job as a whole is similar using MonoSpark and Spark. In short, using monotasks replaces pipelining with statistical multiplexing, which is robust without requiring careful tuning."


The monotasks idea is very simple. But simple ideas have a chance to win. Performance predictability becomes a snap with this, because it is so easy to see/understand what will happen in a slightly different configuration. Monotasks provide very nice observability and resource isolation features.

I suspect this is somewhat Spark specific. It looks like this works best with predictable and CPU/disk/network balanced tasks/applications. These conditions are satisfied for Spark and Spark workloads.

Finally, the monotasks ideas will not work in current virtual machine, container, or cloud environments. Monotasks require direct access to machines to implement per disk, per CPU, and network schedulers.

Dhalion: self-regulating stream processing in Heron (VLDB'17)

This paper appeared in VLDB'17, and is by Avrilia Floratou (Microsoft), Ashvin Agrawal (Microsoft), Bill Graham (Twitter), Sriram Rao (Microsoft), and Karthik Ramasamy (Streamlio).

Dhalion aims to further reduce the complexity of configuring and managing Heron streaming applications. It provides a self-tuning/self-correcting extension to Heron to monitor, diagnose, and correct problems with the deployment. (Dhalion is named after a mythical bird with interesting healing capabilities.)

It turns out there are only 4-5 category of things that can (is likely to) go wrong in a Heron deployment. (I had summarized Heron earlier here.) The detectors and diagnosers in Dhalion check for them. The resolver as a result tries one of these corresponding 4-5 correction actions. And the effectiveness of the correctors are then rated.

Yes, you heard it right, instead of guaranteed-to-work correctors, Dhalion rates the correctors' effectiveness and decides what to try next. "After every action is performed, Dhalion evaluates whether the action was able to resolve the problem or brought the system to a healthier state. If an action does not produce the expected outcome then it is blacklisted and it is not repeated again."

This is not a fool-proof method: what if the reason corrector is ineffective because another fault/condition started developing? Another problem I can see is interference among correctors causing problems. But I think Dhalion tries/evaluates correctors one by one, otherwise the interference issues obfuscates the evaluation of correctors.

So Dhalion takes a probabilistic approach to self-tuning and recovery. But maybe that should not be a cause for alarm.  The system is already faulty, why should the correctors be guaranteed to work? If the corrector framework can try/evaluate them quickly, and converge the system back, that is all that matters. (I am not sure if Dhalion can manage to do this fast enough for most scenarios.)

Saturday, August 19, 2017

Cloud fault-tolerance

I had submitted this paper to SSS'17. But it got rejected. So I made it a technical report and am sharing it here. While the paper is titled "Does the cloud need stabilizing?", it is relevant to the more general cloud fault-tolerance topic.

I think we wrote the paper clearly. Maybe too clearly.

Here is the link to our paper
(Ideally I would have liked to expand on Section 4. I think that is what we will work on now.)

Below is an excerpt from the introduction of our paper, if you want to skim that before downloading the pdf.
The last decade has witnessed rapid proliferation of cloud computing. Internet-scale webservices have been developed providing search services over billions of webpages (such as Google and Bing), and providing social network applications to billions of users (such as Facebook and Twitter). While even the smallest distributed programs (with 3-5 actions) can produce many unanticipated error cases due to concurrency involved, it seems short of a miracle that these web-services are able to operate at those vast scales. These services have their share of occasional mishap and downtimes, but overall they hold up really well.

In this paper, we try to answer what factors contribute most to the high-availability of cloud computing services, what type of fault-tolerance and recovery mechanisms are employed by the cloud computing systems, and whether self-stabilization fits anywhere in that picture.
(Stabilization is a type of fault tolerance that advocates dealing with faults in a principled unified manner instead of on a case by case basis: Instead of trying to figure out how much faults can disrupt the system's operation, stabilization assumes arbitrary state corruption, which covers all possible worst-case collusions of faults and program actions. Stabilization then advocates designing recovery actions that takes the program back to invariant states starting from any arbitrary state.)

Self-stabilization had shown a lot of promise early on for being applicable in the cloud computing domain. The CAP theorem seemed to motivate the need for designing eventually-consistent systems for the cloud and self-stabilization has been pointed out by experts as a promising direction towards developing a cloud computing research agenda. On the other hand, there has not been many examples of stabilization in the clouds. For the last 6 years, the first author has been thinking about writing a "Stabilization in the Clouds" position paper, or even a survey when he thought there would surely be plenty of stabilizing design examples in the cloud. However, this proved to be a tricky undertaking. Discounting the design of eventually-consistent key-value stores and application of Conflict-free Replicated Data Types (CRDTs) for replication within key-value stores, the examples of self-stabilization in the cloud computing domain have been overwhelmingly trivial.

We ascribe the reason self-stabilization has not been prominent in the cloud  to our observation that cloud computing systems use infrastructure support to keep things simple and reduce the need for sophisticated design of fault-tolerance mechanisms. In particular, we identify the following cloud design principles to be the most important factors contributing to the high-availability of cloud services.

  • Keep the services "stateless" to avoid state corruption. By leveraging on distributed stores for maintaining application data and on ZooKeeper for distributed coordination, the cloud computing systems keep the computing nodes almost stateless. Due to abundance of storage nodes, the key-value stores and databases replicate the data multiple times and achieves high-availability and fault-tolerance.
  • Design loosely coupled distributed services where nodes are dispensable/substitutable. The service-oriented architecture, and the RESTful APIs for composing microservices are very prevalent design patterns for cloud computing systems, and they help facilitate the design of loosely-coupled distributed services. This minimizes the footprint and complexity of the global invariants maintained across nodes in the cloud computing systems. Finally, the virtual computing abstractions, such as virtual machines, containers, and lambda computing servers help make computing nodes easily restartable and substitutable for each other.
  • Leverage on low level infrastructure and sharding when building applications. The low-level cloud computing infrastructure often contain more interesting/critical invariants and thus they are  designed by experienced engineers, tested rigorously, and sometimes even formally verified. Higher-level applications leverage on the low-level infrastructure, and avoid complicated invariants as they resort to sharding at the object-level and user-level. Sharding reduces the atomicity of updates, but this level of atomicity has been adequate for most webservices, such as social networks.

A common theme among these principles is that they keep the services simple, and trivially "stabilizing", in the informal sense of the term. Does this mean that self-stabilization research is unwarranted for cloud computing systems? To answer this, we point to some silver lining in the clouds for stabilization research. We notice a trend that even at the application-level, the distributed systems software starts to get more complicated/convoluted as services with more ambitious coordination needs are being build.

In particular, we explore the opportunity of applying self-stabilization to tame the complications that arise when composing multiple microservices to provide higher-level services. This is getting more common with the increased consumer demand for higher-level and more sophisticated web services. The higher-level services are in effect implementing distributed transactions over the federated microservices from multiple geodistributed vendors/parties, and that makes them prone to state unsynchronization and corruption due to  incomplete/failed requests at some microservices. At the data processing systems level, we also highlight a need for self-regulating and self-stabilizing design for realtime stream processing systems, as these systems get more ambitious and complicated as well.

Finally, we point out to a rift in the cloud computing fault model and recovery techniques, which motivates the need for more sophisticated recovery techniques. Traditionally the cloud computing model adopted the crash failure model, and managed to confine the faults within this model. In the cloud, it was feasible to use multiple nodes to redundantly store state, and easily substitute a stateless worker with another one as nodes are abundant and dispensable. However, recent surveys on the topic remark that more complex faults are starting to prevail in the clouds, and recovery techniques of restart, checkpoint-reset, and devops involved rollback and recovery are becoming inadequate.

Friday, August 18, 2017

Paper Summary: Twitter Heron

This summary combines material from "Twitter Heron: Stream Processing at Scale" which appeared at Sigmod 15 and "Twitter Heron: Towards extensible streaming engines" paper which appeared in ICDE'17.

Heron is Twitter's stream processing engine. It replaced Apache Storm use at Twitter, and all production topologies inside Twitter now run on Heron. Heron is API-compatible with Storm, which made it easy for Storm users to migrate to Heron. Reading the two papers, I got the sense that the reason Heron was developed is to improve on the debugability, scalability, and manageability of Storm. While a lot of importance is attributed to performance when comparing systems, these features (debugability, scalability, and manageability) are often more important in real-world use.

The gripes with Storm

Hard to debug. In Storm, each worker can run disparate tasks. Since logs from multiple tasks are written into a single file, it is hard to identify any errors or exceptions that are associated with a particular task. Moreover, a single host may run multiple worker processes, but each of them could belong to different topologies. Thus, when a topology misbehaves (due to load or faulty code or hardware) it is hard to determine the root-causes for the performance degradation.

Wasteful for scheduling resources at the datacenter. Storm assumes that every worker is homogenous. This results in inefficient utilization of allocated resources, and often leads to overprovisioning to match the memory needs of the worker with the highest requirements at all the other workers.

Nimbus-related problems. The Storm Nimbus scheduler does not support resource reservation and isolation at a granular level for Storm workers. Moreover, the Nimbus component is a single point of failure.

ZooKeeper-related gripes. Storm uses Zookeeper extensively to manage heartbeats from the workers and the supervisors. This use of Zookeeper limits the number of workers per topology, and the total number of topologies in a cluster, since ZooKeeper becomes the bottleneck at higher numbers.

Lack of backpressure. In Storm, the sender does not adopt to the speed/capacity of the receiver, instead the messages are dropped if the receiver can't handle them.

Heron's modular architecture

As in Storm, a Heron topology is a directed graph of spouts and bolts. (The spouts are sources of streaming input data, whereas the bolts perform computations on the streams they receive from spouts or other bolts.)

When a topology is submitted to Heron, the Resource Manager first determines how many containers should be allocated for the topology. The first container runs the Topology Master which is the process responsible for managing the topology throughout its existence. The remaining containers each run a Stream Manager, a Metrics Manager and a set of Heron Instances which are essentially spouts or bolts that run on their own JVM. The Stream Manager is the process responsible for routing tuples among Heron Instances. The Metrics Manager collects several metrics about the status of the processes in a container.

The Resource Manager then passes this allocation information to the Scheduler which is responsible for actually allocating the required resources from the underlying scheduling framework such as YARN or Aurora. The Scheduler is also responsible for starting all the Heron processes assigned to the container.

Heron is designed to be compositional, so it is possible to plug extensions into it and customize it. Heron allows the developer to create a new implementation for a specific Heron module (such as the scheduler, resource manager, etc) and plug it in the system without disrupting the remaining modules or the communication mechanisms between them. This modularity/compositionality is made a big deal, and the ICDE17 paper is dedicated entirely to this aspect of Heron design.

Note also that Heron's modular architecture also plays nice with the shared infrastructure at the datacenter. The provisioning of resources (e.g. for containers and even the Topology Master) is cleanly abstracted from the duties of the cluster manager.

Heron Topology Architecture

Having a Topology Master per topology allows each topology to be managed independently of each other (and other systems in the underlying cluster). Also, failure of one topology (which can happen as user-defined code often gets run in the bolts) does not impact the other topologies.

The Stream Manager is another critical component of the system as it manages the routing of tuples among Heron Instances. Each Heron Instance connects to its local Stream Manager to send and receive tuples. All the Stream Managers in a topology connect between themselves to form n*n connections, where n is the number of containers of the topology. (I wonder if this quadratically growing number of connections would cause problems for very large n.)

As you can see in Figure 5, each Heron Instance is executing only a single task (e.g. running a spout or bolt), so it is easy to debug that instance by simply using tools like jstack and heap dump with that process. Since the metrics collection is granular, this makes it transparent as to which component of the topology is failing or slowing down. This small granularity design also provides resource isolation. Incidentally, this reminds me of the ideas argued in "Performance-clarity as a first-class design principle" paper.

Saturday, August 12, 2017

On presenting well

I had written about "how to present your work" earlier. If you haven't read that, that is a good place to start.

I started thinking about this topic recently as my two PhD students Ailidani Ailijiang and Aleksey Charapko had to make their first presentations in ICDCS 2017. I worked with them to prepare their presentations. I listened to 3 drafts of their presentations and helped them revise the presentations. Since the topic of presenting your work was rekindled, I thought I should do another post on this.

Most talks suck

I told my students that most of the conference presentations are dreadful. The good news is that the bar is not high. If you prepare sufficiently and practice, you will be already ahead of the curve.

But why do most talks suck? It is mainly because the presenters got it wrong about the purpose of the talk and try to cover everything in their paper. As a result their slides are not well thought, and the presentation follows the paper outline and tries to cover the paper. The presenters then go through these slides quickly, as if covering more ground means the audience will learn more. And the audience get dazed by powerpoint bullets.

This is a rookie mistake. My students also made that mistake in the first draft of their talks. I told them that if they just fixed this problem, they will be almost there. Below I will give you a step by step walkthrough of how to fix this problem.

Know the game

Covering all things in the paper is a losing battle. The audience has seen a dozen presentations that day, things are getting blurry for them, and their brain is getting mushy. Nowadays you are also competing with Twitter and Facebook for the attention of your audience. (This is one of my biggest pet peeves. What is the deal with people who fly over half the world to get to a conference but then keep checking Twitter and Facebook on their laptops? Seriously?)

Moreover, 20 minutes is a shorter time than you think. You don't stand a chance explaining all your results and the subtleties in your work in 20 minutes. Your best chance is to engage them long enough to communicate the heart of your paper.

So the goal of the presentation is to communicate the essence of your paper, instead of covering all the things in your paper. Instead of presenting too many slides in a poor way, it is best to present fewer slides in a memorable way and get people understand those. If you manage to do this, the audience can read your paper for an in-depth description of your work.

One of the best ways to communicate the idea of a paper is to tell it as a story. A story engages the audience better, and will make the lessons stick longer.

Find your story

This is the most challenging part of your preparation. You need to frame your talk well. You should find the right place to begin, and develop the right story and context to communicate your work. This requires good hard thinking and several iterations.

I helped my students frame their talks. We found stories for their presentations, and restructured their first draft to follow this storyline rather than the paper outline. Then we did a couple more drafts where we revised and refined the flow. Maybe I should do a future post to give a concrete example on finding a story on a presentation. For now, I will just point to this tangentially related post.

The most important thing for framing is to motivate the problem well. Giving concrete examples, albeit simplified, helps for this. 100% of audience should understand the problem, and at least 50% of audience should understand the solution you offer. (This is not to mean you will make the later part of the presentation hard to understand. You will be considered successful if 50% of audience understands despite your best efforts to simplify your explanation.)

When you are trying to communicate your work in simple terms, using analogies help.

Cull your slides

Recall that the purpose of the presentation is to communicate the essence of the result and get people interested to dig in more. How do you do it? You iterate over your slides and remove the slides that don't cut right into the matter. You should have as few slides as you can cut down to. When was the last presentation where you wished you had more slides to present?

I always wished I had less slides to present. For a 20 minute presentation I sometimes get lazy and go with 20 slides. Big mistake! With so many slides, I can't pace myself well and start rushing to finish on time. But if I do my preparation well, I go with 10 slides (with ~3 sentences on each) for a 20 minute presentation. When I had less things to say (because I took the time and prioritized what I want to say), I would be able to communicate those things better and actually manage to teach them to the audience. Yes, although I know the basics about presentations, I botch some presentations up because I am lazy and don't prepare sufficiently.

What is that? Are you telling me it is impossible to present your paper in 10 slides? If you are at least a half-competent researcher/writer, you will know that you can and you should explain things at multiple granularities! You can and should have a 1 sentence summary, 5 sentence summary, and 5 paragraph summary of your work. In your presentation, you should refer to your 1 sentence summary multiple times. The audience should really understand that 1 sentence summary.

Calm your nerves

If you are well prepared with your slides, and practice your talk out loud at least a couple times, that should help calm your nerves, because you know you are prepared and up to the task.

But I won't lie, it is unnerving to be in the spotlight, and have too many eyeballs on you. (Some people argue this fear of public speaking has evolutionary roots. When the early human was standing in the savannah, and felt eyeballs on him, that was bad news: predators are eyeing him and he should be on the run. I don't know how credible this is. Evolutionary psychology has been used for arguing all sorts of things.)

Here are some things that can help calm your nerves.

If you focus on the message you will not focus on your self and ego. The message is the important thing for the audience, so nobody cares if you occasionally stutter and mess up. You are doing a service to the audience by delivering a message. There is no point in agonizing over whether you had a flawless delivery, and whether you looked good while presenting. If you deliver your message, then your content will speak for itself.

Another thing that can help is to reframe the situation. Your heart is beating hard not because you are scared, but because you are excited that you got the opportunity to talk about your work. And it is perfectly fine being excited about your talk. If you reframe it this way, this can even give you an energy boost for your talk.

You also need some alone time, a couple hours before you give the talk. Visualizing the talk will help a lot. Visualize yourself standing there, arguing the important points of the paper, slowly and confidently. Simulate your talk giving experience in your brain.

And don't worry if you get nervous and botch up some presentations. I did my fair share of botching up presentations, and found that people don't notice since most conference presentations are bad anyways. Chalk those as experience points. It will get better with time and you will slowly build immunity to stage fright. When I first started presenting, I was very nervous about standing in front of large crowds. It felt terrifying. But now it is just Tuesday afternoon, teaching Distributed Systems class. So start getting yourself exposed to crowds to build immunity.

A job well done

If you do all that hard work in advance, you will get to enjoy yourself at the presentation. You will speak slowly and confidently. You will make eye contact with the audience, and get visual confirmation that people are following you, which will also energize you. You will get questions after the talk, and that is always a good sign people were engaged.

Both my students nailed their talks. Congratulations to them for a job well done. They got several good questions after the talk, and well earned applauses at the end. I know they will do better in other talks in the future, if they don't forget the lessons from this first presentation: find a good story, explain the heart of your work in as little number of slides as possible.

Related Posts

Nobody wants to read your shit
How I write
How to write your research paper
How to present your work
Book review: "Good prose" and "How to write a lot"
Writing advice

Wednesday, August 9, 2017

Paper summary " Encoding, Fast and Slow: Low-Latency Video Processing Using Thousands of Tiny Threads"

This paper was written earlier than the "PyWren: Occupy the Cloud" paper, and appeared in NSDI'17. In fact this paper has influenced PyWren. The related work says "After the submission of this paper, we sent a preprint to a colleague who then developed PyWren, a framework that executes thousands of Python threads on AWS Lambda. ExCamera’s mu framework differs from PyWren in its focus on heavyweight computation with C++-implemented Linux threads and inter-thread communication."

I had written about AWS Lambda earlier. AWS Lambda is a serverless computing framework (aka a cloud-function framework) designed to execute user-supplied Lambda functions in response to asynchronous events, e.g., message arrivals, file uploads, or API calls made via HTTP requests.

While AWS Lambda is designed for executing asynchronous lightweight tasks for web applications, this paper introduced the "mu" framework to run general-purpose massively parallel heavyweight computations on it. This is done via tricking Lambda workers into executing arbitrary Linux executables (like LinPack written in C++). The mu framework is showcased by deploying an ExCamera application for compute-heavy video encoding. The ExCamera application starts 5000-way parallel jobs with IPC on AWS Lambda.

The paper provides the mu framework as opensource software.

Going from Lambda to Mu

The Lambda idea is that the user offloads her code to the cloud provider, and the provider provisions the servers and runs her code. It is easy to start 1000s of threads in parallel in  sub-second startup latency (assuming warm Lambda instances). Upon receiving an event, AWS Lambda spawns a worker, which executes in a Linux container with up to two 2.8 GHz virtual CPUs, 1,536 MiB RAM, and about 500 MB of disk space.
So if Lambda uses container technology, what is its difference from just using containers? The difference is that once invoked the container stays warm at some server waiting another invocation and this does not get charged to you since you are not actively using it. Lambda bills in 100ms increments, and only when you call the Lambda instance with a function invocation. In contrast, EC2 deploys in minutes and bills in hours, and the Google Compute Engine bills in 10 minute increments.

I think another significant difference is that Lambda forces you to use the container via function calls and in stateless mode. This is a limitation, but maybe this forced constraint accounts for most of the success/interest in this platform. Stateless and disaggregated way of doing things may be more amenable for scalability.

The mu platform has two important components external to the Lambda platform: the coordinator and the rendezvous center. And of course it has Lambda workers, thousands of them available on command.

The mu coordinator

The mu platform has an explicit coordinator. (Recall that the PyWren platform design had a thin shim driver at the laptop.) The coordinator is a long-lived server (e.g., an EC2 VM) that launches jobs and controls their execution.   The coordinator is truly the puppeteer. It manipulates the actions of each Lambda workers individually, and the workers comply as drones. The coordinator contains all of the logic associated with a given computation in the form of per-worker finite-state-machine (FSM) descriptions. For each worker, the coordinator maintains an open TLS connection, the worker’s current state, and its state-transition logic. When the coordinator receives a message from a worker, it applies the state-transition logic to that message, producing a new state and sending the next RPC request to the worker using the AWS Lambda API calls. (These HTTP requests are a bottleneck when launching thousands of workers, so the coordinator uses many parallel TCP connections to the HTTP server--one per worker-- and submits all events in parallel.) For computations in which workers depend on outputs from other workers, mu’s coordinator uses dependency-aware scheduling: the coordinator first assigns tasks whose outputs are consumed, then assigns tasks that consume those outputs.

The Lambda workers

The workers are short-lived Lambda function invocations. All workers in mu use the same generic Lambda function. The user only installs one Lambda function and workers spawn quickly because the function remains warm. The user can include additional executables in the mu worker Lambda function package. The worker can then execute these in response to RPCs from the coordinator. The coordinator can instruct the worker to retrieve from or upload to AWS S3, establish connections to other workers via a rendezvous server, send data to workers over such connections, or run an executable.

The mu rendezvous server

The mu platform employs a rendezvous server that helps each worker communicate with other workers. Like the coordinator, the rendezvous server is long lived. It stores messages from workers and relays them to their destination. This means that the rendezvous server’s connection to the workers can be a bottleneck, and thus fast network connectivity between workers and the rendezvous is required.

Using the mu platform

To design a computation, a user specifies each worker’s sequence of RPC requests and responses in the form of a FSM, which the coordinator executes.  The simplest of mu’s state-machine components represents a single exchange of messages: the coordinator waits for a message from the worker, sends an RPC request, and transitions unconditionally to a new state. To encode control-flow constructs like if-then-else and looping, the mu Python library includes state combinator components. An if-then-else combinator might check whether a previous RPC succeeded, only uploading a result to S3 upon success.

ExCamera video encoding application

The paper implements a video encoder intended for fine-grained parallelism, called ExCamera. ExCamera encodes tiny chunks of the video in independent threads (doing most of the “slow” work in parallel), then stitches those chunks together in a “fast” serial pass, using an encoder written in explicit state-passing style with named intermediate states.

In formats like 4K or virtual reality, an hour of video may take many hours to process as video compression relies on temporal correlations among nearby frames. However, ExCamera cuts this by an order of magnitude by deploying 1000s of Lambda workers in parallel and coordinating them via the mu platform.

As another application of the mu platform, the authors did a live demo for their NSDI17 conference talk. They had recorded 6 hours of video at the conference, and using OpenFace and mu platform on AWS Lambda they selected the frames where George Porter, a coauthor, appeared in the feed. This was done in minutes time and was indeed pretty bold thing to do at a presentation.


The paper has a limitations section. (I always wanted to include such a section in my papers. Maybe by including the limitations section you can preemptively disarm straightforward criticisms.) The limitations lists:
+ This is evaluated only on two videos.
+ If everybody used Lambda this way, would this still work?
+ The pipeline specification that the user should provide is complex.
+ A worker failure kills the entire job.

The paper mentions an experiment that ran 640 jobs, using 520,000 workers in total, each run for about a minute on average. In that experiment three jobs failed. This is a low failing rate, but this doesn't scale well with increasing job sizes.

Tuesday, August 8, 2017

Paper summary: Occupy the Cloud: Distributed Computing for the 99%

"We are the 99%!" (Occupy Wall Street Movement, 2011)

The 99% that the title of this paper refers to is the non-cloud-native and non-CS-native programmers. Most scientific and analytics software is written by domain experts like biologists and physicists rather than computer scientists. Writing and deploying at the cloud is hard for these folks. Heck it is even hard for the computer science folk. The paper reports that an informal survey at UC Berkeley found that the majority of machine learning graduate students have never written a cluster computing job due to complexity of setting up cloud platforms.

Yes, cloud computing virtualized a lot of things, and VMs, and recently containers, reduced the friction of deploying at the clouds. However, there are still too many choices to make and things to configure before you can get your code to deploy & run at the cloud. We still don't have a "cloud button", where you can push to get your single machine code deployed and running on the cloud in seconds.

But we are getting there. AWS Lambda and Google Cloud Functions aim to solve this problem by providing infrastructure to run event-driven, stateless functions as microservices. In this "serverless" model, a function is deployed once and is invoked repeatedly whenever new inputs arrive. Thus the serverless model elastically scales with input size. Here is an earlier post from me summarizing a paper on the serverless computation model.

This paper, which appeared on arXiv in February 2017 and revised June 2017, pushes the envelope on the serverless model further in order to implement distributed data processing and analytics applications. The paper is a vision paper, so it is low on details at some parts, however a prototype system, PyWren, developed in Python over AWS Lambda, is made available as opensource.

In order to build a data processing system, the paper dynamically injects code into these stateless AWS Lambda functions to circumvent its limits and extend its capabilities. The model has one simple primitive: users submit functions that are executed in a remote container; the functions are stateless; the state as well as input, and output is relegated to the shared remote storage. (This fits well with the rising trend of the disaggregated storage architecture.) Surprisingly, the paper finds that the performance degradation from using such an approach is negligible for many workloads.

After summarizing the code injection approach, I will mention how PyWren can implement increasingly more sophisticated data processing applications ranging from all Map, to Map and monolithic reduce, and MapReduce, and finally a hint of parameter-server implementation.

Code injection

An AWS Lambda function gives you 5 minutes (300secs) of execution time at single core and 1.5 Gb RAM, and also gives you 512 MB in /tmp. PyWren exploits this 512MB tmp space to read Anaconda Python Runtime libraries. (This linked talk clarified PyWren code injection for me.)

PyWren serializes the user submitted  Python function using cloudpickle. PyWren submits the serialized function along with each serialized datum by placing them into globally unique keys in S3, and then invokes a common Lambda function. On the server side, PyWren invokes the relevant function on the relevant datum, both extracted from S3. The result of the function invocation is serialized and placed back into S3 at a pre-specified key, and job completion is signaled by the existence of this key. In this way, PyWren is able to reuse one registered Lambda function to execute different user Python functions and mitigate the high latency for function registration, while executing functions that exceed Lambda’s code size limit.

Implementing Map, MapReduce, and the Parameter-Server

Map implementation. Many scientific and analytic workloads are embarrassingly parallel. The map primitive provided by PyWren makes addressing these use cases easy. Calling the map launches as many stateless functions as there are elements in the list that one is mapping over.

Map + Monolithic reduce. An easy way to implement MapReduce is to do the Reduce in just one machine. For this one machine to perform reduce, they use a dedicated single r4.16xlarge instance. This machine offers a very large amount of CPU and RAM for $14 an hour.

MapReduce via BSP. To perform Reduce over many workers, we can use the bulk synchronous processing (BSP) model. To implement the BSP model and data shuffling across the stages PyWren leverages the high-bandwidth remote storage AWS S3 provides. To showcase this approach, they implemented a word count program in PyWren and found that on 83M items, it is only 17% slower than PySpark running on dedicated servers.

The paper does not describe how BSP is implemented. I guess this is the responsibility of the driver program on the scientist's laptop. Eric Jonas, one of the authors of this work, calls this the shim handler, that submits the lambda functions to AWS. So I guess this driver checks the progress on the  rounds by polling S3, and prepare/invoke the lambda functions for the next round.

The paper also implements a more ambitious application, Terasort, using the PyWren MapReduce. Since this application produces a lot of intermediate files to shuffle in between, they say S3 becomes a bottleneck. So they use AWS elastic cache, a Redis in-memory key-value store. Using this, they show that PyWren can sort 1TB data in 3.4 minutes using 1000 lambda workers.

The Parameter-server implementation. The paper claims to also implement Parameter-Server again using Redis inmemory keyvalue store. But there are no details, so it is unclear if the performance of using that is acceptable.


They find that it is possible to achieve around 30-40 MB/s write and read performance per core to S3, matching the per-core performance of a single local SSD on typical EC2 nodes. They also show that this scales to 60-80 GB/s to S3 across 2800 simultaneous functions.

Using AWS Lambda is only ~2× more expensive than on-demand instances. The paper says that this cost is worthwhile "given substantially finer-grained billing, much greater elasticity, and the fact that many dedicated clusters are often running at 50% utilization".

As for limitations, this works best if the workers do not need to coordinate frequently and use most of the 5 minutes (i.e. 300s) of lambda function execution time for computing over the data input to its 1.5GB RAM to produce the output data. So the paper cautions that for applications like particle simulations, which require a lot of coordination between long running processes, the PyWren model of using stateless functions with remote storage might not be a good fit.

It looks like beyond the map functionality, ease of programming is still not that great. But this is a step in the right direction.

Monday, August 7, 2017

ICCCN'17 trip notes, days 2 and 3

Keynote 2 (Day 2)

Bruce Maggs gave the keynote on Day 2 of ICCCN. He is a professor at Duke university and Vice President of Research at Akamai Technologies. He talked about cyber attacks they have seen at Akamai, content delivery network (CDN) and cloud services provider.

Akamai has 230K servers, 1300+ networks, 3300 physical locations, 750 cities, and 120 countries. It slipped out of him that Akamai is so big, it can bring down internet, if it went evil, but it would never go evil :-) Hmm, should we say "too big to go evil?". This, of course, came up as a question at the end of the talk: how prepared is the Internet for one of the biggest players, such as Google, Microsoft, Netflix, Yahoo, Akamai, going rouge? Bruce said, the Internet is not prepared at all. If one of these companies turned bad, they can melt internet. I followed up that question with rouge employee and insider threat question. He said that, the Akamai system is so big that it doesn't/can't work with manual instruction. They have a very big operational room, but that is mainly to impress investors. Because at that scale, the human monitoring/supervision does not work. They have autonomous systems in place, and so the risk of screw-up due to manual instruction is very low. (This still doesn't say much of the risk of a computerized screw up.)

OK, back to his talk. Akamai has customers in eCommerce, media and entertainment, banks (16/20 of the global banks), and almost all major antivirus software vendors. He gave some daily statistics: 30+ TB/s traffic served, 600 million IPv4 addresses, 3 trillion http requests, and 260 terabytes compressed logs.

Then he started talking about DDOS attacks, where the attackers want to do damage to the provider by its overwhelming resources. The attackers often recruit an army of compromised drone/bot machines, and they look for amplification of the requests sent by this drone army.

Bruce showed a graph of largest DDOS attacks by year. The attacks were exponentially growing in size in GB/s. 2017 saw the largest attack by a factor of two, where it reached 600Gbps gigabit per second at some point during the attack. WOW!

In 2016, 19 attacks exceeded 100 Gbps. The March 12, 2016, DNS reflection attack reached 200 GB/s. Th most popular attacks are the ones with the largest amplification, which is defined as the rate of request to response. DNS reflection attack has 28 to 54 amplification. The mechanism used for blocking this attack was built by "prolexic" IP anycast scrubbing centers. In this setup the origin server had dozens of scrubbing centers/servers that filter the requests first and allow only good ones to go the origin server.

It looks like these CDN guys are faring wars with the attackers on the Internet on a daily basis. It turns out attackers generally perform pre-attack reconnaissance using short burst of attacks/probes, and the CDN companies also monitor/account for these tactics.

Bruce gave some statistics about DDOS attack frequency. The surprising thing is the gaming industry is the target of majority of attacks at 55%. It is followed by Software technology at 25%, Media at 5%, and Finance at 4%. Why target the gaming houses? A DDOS slows the online game, and upsets the gamers. So the attackers do this to extort the gaming companies.

Bruce also talked about the attack on, the blog for the security researcher Jay Krebs.  Akamai hosted this page pro bono. But this site got a huge attack stemming from IOT bots. This was more than twice in volume of any attack they have seen. Akamai held up, but after a couple days of strong attacks, this started costing dear money to Akamai, who was doing this pro bono. After September 26, Google took over hosting the Krebs site pro bono.

Bruce talked about many other attacks, including the  SQL attack: select * from employees where lname= '' or '1'='1'. The lesson is you should sanitize your SQL input! Akamai scrubs bad looking SQL.

Another attack type is bot-based account takeover. The attackers first attack and obtain password dumps. And then they exploit the fact that many people use same username and password across services. The attackers then take the big password file, break it into pieces, send it to compromised routers, and these routers try these combinations with bank accounts, and look for lucky matches. This is not a DDOS attack, in fact they try to do this inconspicuously at rates as slow as couple per hour.

My takeaway from the presentation is whatever these CDNs are charging their customer companies is still a good deal. Because the way things are setup currently, it is hard for a small company like a bank, media site, etc. to withstand these attacks alone. On the other hand, I hope these CDN companies stay on the top of their game all the time. Because they have huge responsibility, they are too big/dangerous to fail. It is scary to think that it is Akamai who is serving the https, not the banks. In other words, Akamai has the private keys for the banks, and serve https on their behalf.

Panel 2 (Day 2)

Panel 2 was on "Cloud Scale Big Data Analytics". The panelists were: Pei Zhang(CMU); Vanish Talwar(Nutanix); Indranil Gupta (UIUC); Christopher Stewart (Ohio State University); Jeff Kephart (IBM).

Indy Gupta talked about intent-based distributed systems harking back to the "intent-based networking" term coined by Cisco. He cautioned that we are not catering to our real users. We invented the internet, but missed the web. We developed p2p, but missed its applications. He cautioned that we are dangerously close to missing the boat for big data analytics. The typical users of big data analytics are not CS graduates, but rather physics, biology, etc. domain experts. And they don't understand "scheduling", "containers/VMs", "network and traffic virtualization". And neither should they be forced to learn/understand this in an ideal world. They know what performance they need, such as latency, throughput, and deadlines, and we should design our big data systems to be able to serve them based on these end goals/metrics.

Jeff Kephard from IBM TJ Watson talked about embodied cognition and symbiotic cognitive computing, but in a twist of fate had to attend the panel as a disembodied Skype participant.

Yunqiao Zhang from Facebook talked about disaggregated storage and mapreduce at Facebook. The idea here is to separate the compute and storage resources so that they can evolve/sprawl/and get utilized independently. The two disaggregated systems, i.e., the compute and storage systems, are tethered together by very fast Ethernet. The network speed and capacity today is so good, it is possible and economical to do this without worrying about traffic. This was very interesting indeed. I found a talk on this which I will listen to learn more about the disaggregated MapReduce at Facebook.

Pei Zhang from CMU at Silicon Valley talked about collecting IoT data from the physical world.

Chris Stewart from The Ohio State University talked about the need for becoming transparent for big data systems from data collection, management, algorithm design, to the data translation/visualization layers.

The question and answer session included a question on the gap between the data mining and cloud systems communities. The panel members said that more collaboration is needed, while it is inevitable and even useful to look at the same problems from different perspectives. Couple panel members remarked that today the best place these communities collaborate is inside companies like Facebook and Google.

Keynote 3 (Day 3)

Henning Schulzrinne talked about "Telecom policy: competition, spectrum, access and technology transitions". He has been working at the government at the last 7 years on and off and so was able to give a different perspective than the academic. He talked about opportunities for research that go beyond classical conference topics.

He listed the key challenges as:
+ competition & investment poorly understood
+ spectrum is no longer just bookkeeping
+ rural broadband is about finding the right levers
+ emergency services still stuck in pre-internet

He talked at length about network economics. What we as CS guys have been optimizing turned out to be a very small sliver of the network economics: equipment 4%, construction 11%, operations 85%. We the CS researchers have been optimizing only equipment and have been ignoring economics! We should focus more on facilitating operations. Operations is not efficient, if we can figure out how to make networks more easily operable, and require less human resources, we will have larger impact than tweaking protocols.

He talked also about rural broadband, and mentioned that the drones/balloons are inapplicable as their capacity is not enough. The cost of deployment in rural is high, and the incentive for companies to deploy is low. But, pretty much everyone has wired telephone service, how did that happen? There was an unspoken bargain: the government said to ATT we'll give you monopoly, and you'll give us universal service. This was never stated but understood. He said to solve the rural broadband problem, policy levers need to pulled.
+ decrease cost of serving: dig once: bury cable during street repair & construction
+ provide funding: universal service fund (US $8 billion from tax money).

He talked about recycling TV broadband spectrums and how this is a very active issue now. He also talked about serving the disabled via the subtitles requirements, text-to-911, voip emergency, and wireless 911 services.

To conclude he asked us to think about the network problem holistically, including economics and policy in the equation. Many of the problems are incentive problems. And there is a need to think in decades not conference cycles! The network performance is rarely the key problem; academics work on things that can be measured, even when they are not that important.

Panel 3 (Day 3)

The Panel 3 was on "Federal Funding for Research in Networking and Beyond". The panelists were Vipin Chaudhary (US NSF); Richard Brown (US NSF); and Reginald Hobbs (US Army Research Lab).

Rick Brown talked about NSF CISE divisions:
+ CNS: computer network systems
+ CCF: computing and communication foundations
+ IIS: information & intelligent systems
+ OAC: Office of Advanced Cyberinfrastructure

He mentioned that NSF was established by congress in 1950 with the yearly  budget of $3.5 billion, with the post ww2 understanding of importance of science to the country. NSF promotes bottom up basic research culture in contrast to NIH NASA DARPA which tells you what to work on and build.

The total NSF 2017 budget 7.8 billion. NSF gets around 50K proposals, funds 10K of them. 95% of budget goes to the grants, only 5% goes to operational costs.

Reginal Hobbs talked about the funding & research collaboration opportunities at the Army Research Laboratory.

Vipin Chaudhary talked first about NSF broadly and then specifically about the  office of advanced cyberinfrastructure at NSF. He said that the CISE budget is approximately 840M, and in computer science 83% of academic research in CS is covered by NSF. (I didn't expect this ratio to be this high.)

He described the NSF I-Corps program at the end of his talk, which was very interesting for its support for entrepreneur activities. This program helps you to figure out if you are facing valley of death or black hole in your research commercialization process. Most academic spinouts fail because they develop something no one cares about. I-Corps provides support for you to meet with customers and test your hypothesis about what your product should be based on their feedback.

Wednesday, August 2, 2017

ICCCN'17 trip notes

I flew with United airlines, with a connection at Chicago at noon to arrive Vancouver at 3:00pm PST. The second flight took 4.5 hours and was not easy. On the plus side, the flights were on time. I don't want to jinx it but I have not had any flight trouble the last 2-3 years. Chicago O'Hare airport still scares me. For at least 4-5 instances, I spent extra nights at O'Hare airport due to canceled or missed flights.

The entry to Vancouver was nice. We used screens to check ourselves in at the border. After answering some questions, and taking a selfie, the screen gave me a printout. The Canadian border agents, only took 5 seconds checking my passport and printout before allowing me in the country. Finally a border check that doesn't suck.

It was also pleasant to travel from the airport to the conference hotel, at the Vancouver Waterfront. I bought a ticket for $9, and jumped on the Canada Line train at the airport. The two-car train did not have any operator, and operated smoothly loading/unloading passengers through 12 stations, about 12 miles, in less than 30 minutes. I guess those trains support some form of remote control if something goes unexpected on the rails.

I stayed at the ICCCN conference hotel, to keep things convenient. I missed the sessions on the first day, but made it to the reception at 6pm. At the reception, I met colleagues/friends and we had a nice chat catching up on things, exchanging notes/advice about faculty stuff.

After the reception, I hit the Waterfront for a relaxing stroll. This was around 8pm. I walked along the sea path till it got dark. Vancouver is a laid back place. The fresh smell and the cool breeze from the ocean makes the city a relaxing place. And then there are lush green mountains around the city. I could feel my stress and worries melting away. (But of course, Vancouver is not as laid back as Hawaii, where ICCCN was held the previous year. Yes, last year, I went to Kona Hawaii, and had a great time there, and never even mentioned that on Twitter or in my blog once. I must be a true gentleman!)

I went to bed around 10pm PST, which is 1am EST. I was extremely tired but of course due to jet lag I woke up at 2am and then was definitely up at 5:30am. So I went to the gym at 4th floor. I was hoping there would be a sauna and a pool. Bingo! Sauna, steam room, jacuzzi, and pool. I spent 10-15 minutes at each one. I was there from 6-7am. Only two other people showed up during that time. This hotel has 30 floors, and about 20 rooms at each floor and only 3 people were using the gym in the morning. This is a very low ratio, but I am not surprised. If something is worth doing, a vast majority of people will pass up.

Day 2

I attended the keynote on the morning of the second day. It was very well delivered by Bruce Maggs, Vice President of Research for Akamai Technologies. I will provide my notes from that in my next post.

After the keynote, I hit the Waterfront again to take on the Stanley park.  The Waterfront seaside path continues around the Stanley park for 10 miles. So to travel around the Stanley park, I rented a bike at the Waterfront at the UrbanWaves shop. The ride was totally worth it for the beautiful scenery.

It seems like Vancouver has some strong runners. A couple of the runners completed the ~10 miles circuit faster than I could bike. Of course, I biked leisurely and stopped many times to enjoy the view and take pictures, but still the stamina and speed of these runners were impressive. They were slim and toned, and ran in perfect form, hitting the ground with front/mid foot first with nice strides.

I attended the panel after lunch. I will talk about the panel in the next post as well. After the panel, I was feeling very tired. Coffee didn't help, and I had to head up to my room to nap. Before the Banquet dinner at 7pm, I went to Waterfront again to write this post.

OK, I shouldn't be having this much fun. I should get back to writing those NSF project reports.

Two-phase commit and beyond

In this post, we model and explore the two-phase commit protocol using TLA+. The two-phase commit protocol is practical and is used in man...
